This video mainly shows the equipment details of the PLC-controlled fully continuous pyrolysis technology and the overall infrastructure of the project site. By watching the video, you can also understand the basic process flow of the operation of the fully continuous pyrolysis machine.

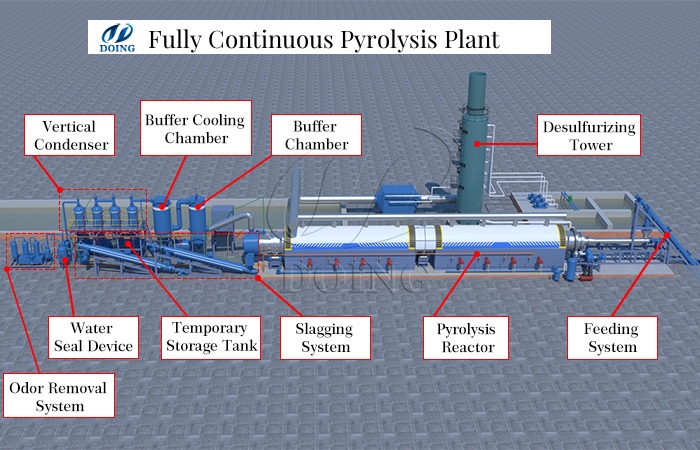

Process flow of PLC control fully continuous pyrolysis technology:

1. Feed the pre-treated waste feedstocks. The waste raw materials, such as waste tires, rubber powder processed from waste rubber, and crushed waste plastic raw materials, are transported into the reactor through auto-feeder.

2. Continuous pyrolysis: continuous heating of the raw materials, and continuous operation; At present, the new upgraded process of fully continuous pyrolysis machine adopts hot air furnace heating, which has a more uniform heating temperature.

Fully continuous pyrolysis machine confiragutaion details

3. Pyrolysis oil and gas condensation. This is a fully automatic process. After high-temperature pyrolysis, the oil-containing substances in the materials are basically converted into oil gas; the multi-stages condensors further exchange the oil gas into oil and non-condensable syn-gas effectively. The syn-gas will be recovered as the fuel for heating pyrolysis reactor.

4. Continuous discharge: Continuous and automatic uninterrupted slag discharge throughout the process. After the waste raw materials arepyrolyzed, carbon slag such as carbon black is left. These slag materials are discharged through the automatic slag discharger and then collected.

5. Purify the exhaust gas. The exhaust gas from heated combustion is comprehensively treated by the exhaust gas purification system and then discharged in compliance with the standards.

If you have requirements for pyrolysis machines with high automation, small staffing requirements, and 24-hour continuous feeding advantages, then DOING PLC fully continuous pyrolysis technology is a good choice!
