Continuous Oil Sludge Pyrolysis Plant

Processing Capacity

15/20/30/50TPD, custom

End Products

Pyrolysis fuel oil, solids, and gases

Core Components

Pyrolysis reactor, condenser, PLC

Certificates

CE, ISO, SGS

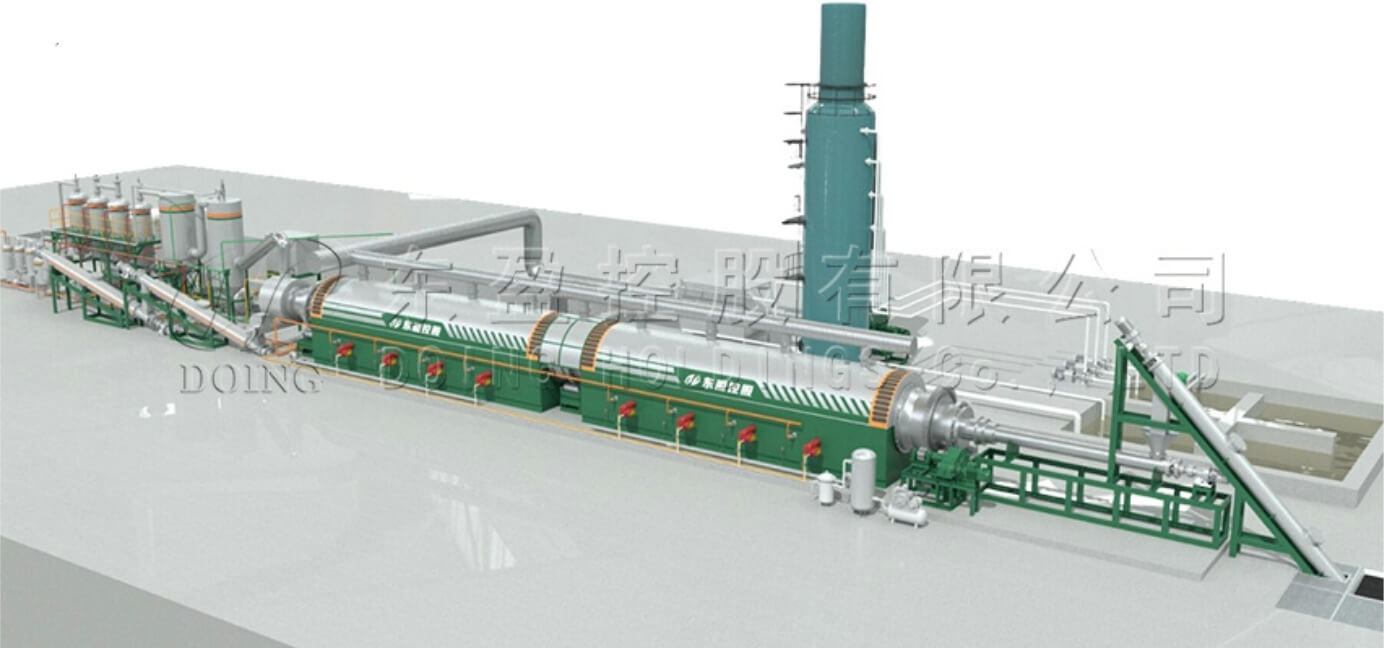

Designed specifically for oil sludge treatment, DOING continuous oil sludge pyrolysis plant delivers reliable and eco-friendly recovery of valuable hydrocarbons. Through continuous thermal decomposition, it effectively separates oil, solids, and gases, maximizing oil recovery while reducing hazardous waste. This system meets stringent environmental standards and is suited for oilfields, oil refineries, and industrial oily contaminants treatment facilities. It will give you a powerful approach to make a lot of money and you can quickly produce tons of oil using this machine.

Continuous Oil Sludge Pyrolysis Plant Working Process Video

Get fundamental understanding of our continuous oil sludge treatment pyrolysis desorption unit in this engaging 3D video, which demonstrates how our pyrolysis plant continuously decomposes oil sludge, recovers oil and gas while safely disposing of residues. Our efficient, multi-stage oil sludge pyrolysis workflow, offering a reliable, eco-conscious solutions for oilfield and refinery waste challenges.

Raw Material

Oil sludge pyrolysis equipment (also called thermal decomposition unit TDU plant) can process waste materials such as spilled oil sludge, tank bottom oil sludge, oil refinery oil sludge, engine oil sludge, steel plant oil sludge, oil spills, and industrial sludge. The main characteristics of oil sludge are high water content, high oil content, large volume, high content of harmful components, and viscous, difficult-to-process properties. Therefore, it requires sophisticated pyrolysis technology and equipment configuration.

Working Process

The fully continuous oil sludge pyrolysis plant utilizes high-temperature anaerobic pyrolysis technology to convert the organic matter in the sludge into light oil and gas, liquid oil, and solid carbon black, achieving resource utilization. The process flow is designed for continuous production, supporting 24-hour uninterrupted operation, and mainly includes pretreatment, pyrolysis, oil-gas separation, tail gas treatment, and residue treatment.

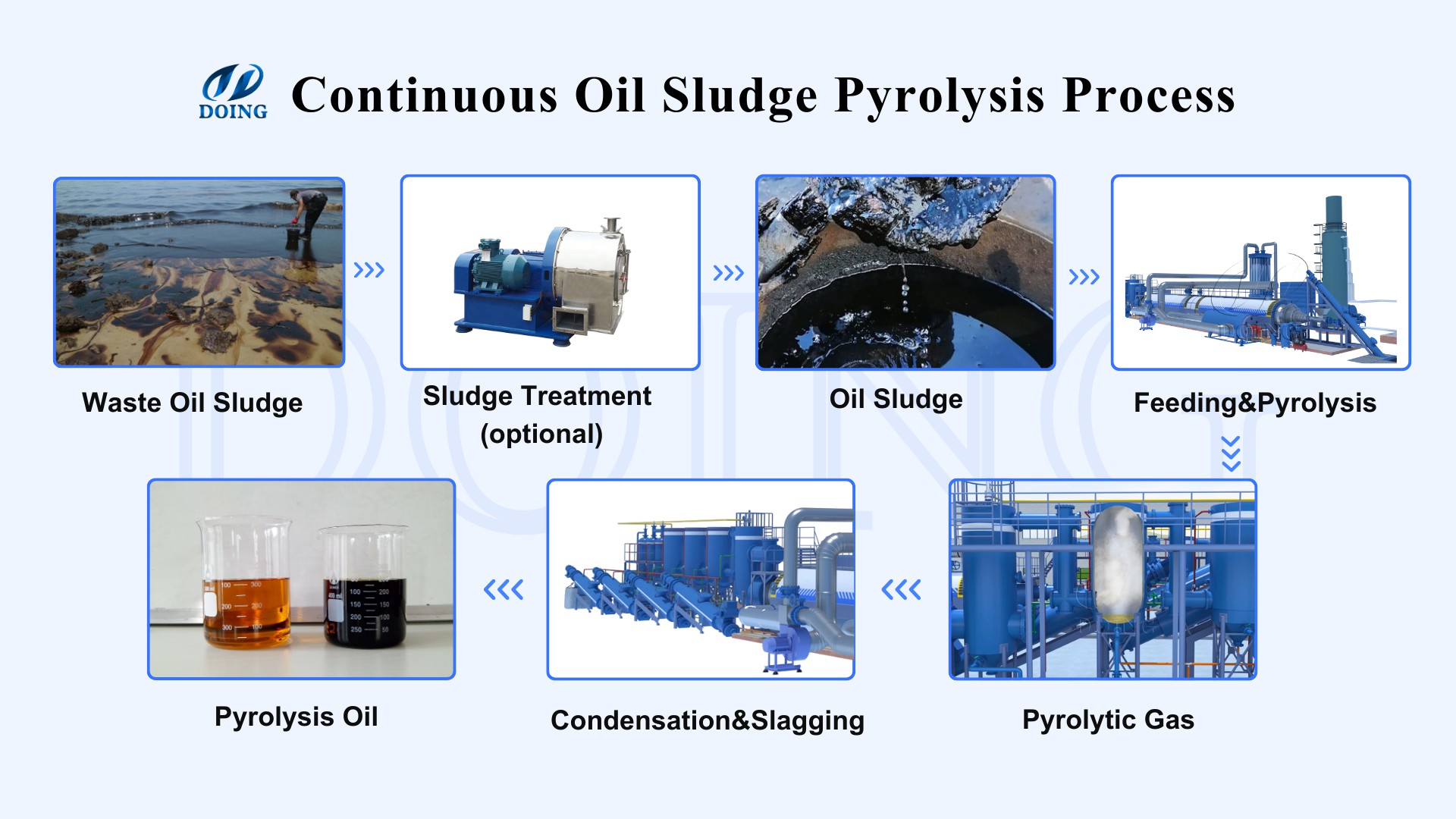

Continuous Oil Sludge Pyrolysis Process Workflow

Pretreatment System

Oily sludge is first crushed or dehydrated (depending on the feedstock's state) by a crusher to facilitate heat transfer; it then enters the feeding system to ensure material uniformity, creating conditions for subsequent pyrolysis.

Pyrolysis Reaction System

The pretreated sludge continuously enters the rotary pyrolysis reactors, where a pyrolysis reaction occurs in a high-temperature, anaerobic environment of 200-600℃, decomposing heavy hydrocarbons into light oil and gas. The reactor is equipped with a propeller and anti-sticking wall design to ensure uniform heating and complete pyrolysis of the material.

Oil-Gas Separation System

The generated oil-gas mixture first passes through a buffer tank to slow its flow rate and allow carbon black to settle. It then sequentially enters a condensation catalytic chamber and a multi-stage condenser, where circulating water cooling condenses the oil-gas mixture into liquid oil. The condensed gas is then purified and can be reused or discharged.

Exhuast Gas Treatment System

The exhaust gas generated during oil sludge pyrolysis process contains harmful substances such as sulfides and nitrogen oxides. It must be treated by equipment such as desulfurization and dust removal towers and pulse dust collectors to ensure emissions meet standards.

Residue Treatment System

Solid residue from pyrolysis is continuously discharged via the slag discharge auger. During the process, water cooling is used to lower the carbon black to room temperature, facilitating safe transportation or resource utilization.

Technical data of Continuous Waste Oil Sludge Pyrolysis Plant

Item	Details
Raw Materials	Waste rubber materials, waste tyre/tires, waste plastic, waste oil sludge, biomass materials, etc.
Final Products	Fuel oil, carbon black, steel wire(for tire), combustible gas, etc.
Model	Model	Processing Capacity/Set
	DY-C-15	15 tons/day
	DY-C-20	20 tons/day
	DY-C-30	30 tons/day
	DY-C-50	50 tons/day (Support to customize lager capacity)
Machine Type	Continuous type pyrolysis machine
Reactor Material	Q345R/Q245R/ boiler plate/304/316 stainless steel
Thickness	DOIN(14/16/18/20mm)
Heating Type	Indirect heating
Heating Fuel	LPG, fuel oil, syn-gas, natural gas
Cooling Type	Circulating water cooling
Floor Area	Take a 50-ton machine as an example, 1200 square meters (length: 70 meters, width 17.5 meters)
Required Workers	1-2 workers per shift
Note	Multi-reactor design to ensure efficient pyrolysis effect

Unique Advantages of DOING Continuous Waste Oil Sludge Pyrolysis Plant

Our continuous oil sludge treatment pyrolysis equipment is designed for super efficiency in handling various types of hazardous waste oil sludge and contaminated wastes. This pyrolysis equipment ensures 24/7 operation with high recovery rates of reusable oil, oil sludge decoking devices to prevent blockages, corrosion-resistant build for harsh environments, and stringent emission controls that comply with international regulations. It's the ideal choice for sustainable oil sludge treatment and recovery.

01 Rotated pyrolysis reactor

The new type continuous oil sludge pyrolysis plant adapts rotated reactor, which could be heated evenly in 360°. This way it would not heat only one part of the reactor for long time, thus to make the reactor more durable.

02 Rollover device

Inside the pyrolysis reactor, there is the rollover device. The input materials would be turned over 4000 times from feeding to slagging. And the materials inside the reactor are forced to be turned over continuously and highly dispersed, which could get evenly heating , thus greatly increase the pyrolysis speed.

03 Adapt rotation outside and inner diverter heating method

The raw materials is pyrolyzed against the wall of reactor by directly touching the heat transferred reactor surface of the continuous oil sludge pyrolysis plant. To receive heat fast to make sure that the heat exchange is fast.

04 Multiple capacity to choose

The processing capacity of pyrolysis equipment can be increased or decreased according to our clients’ production demand, thus we can adjust the industrial production scale. For example, our hot sale type is 15ton, 20 tons, 30 tons and 50 tons. Of course, you can also customize other processing capacity.

05 Environmental friendliness and safety

Adopts a continuous feeding and closed slag discharge design, effectively preventing the leakage of harmful substances. After treatment, the oil content in the solid phase can be below 0.3%, and the gaseous and liquid products meet emission standards after treatment. The equipment operates in a slightly negative pressure environment and employs an optimized sealing structure, reducing operational risks and improving safety.

Final Products And Their Application

Fuel oil

Solid waste

Combustible Gas

Fuel oil

· Recovered fuel oil from waste oil sludge pyrolysis process is of high quality, so you can use it as fuel oil directly for industrial heating.
· You can also isntall the pyrolysis oil to diesel distillation plant to refine it into diesel.
