Every year, the world generates over a billion waste tires, hundreds of millions of tons of waste plastic, and vast quantities of oily sludge. Faced with increasingly stringent environmental regulations and the need for resource recycling, pyrolysis technology is shifting from an option to a necessity.
However, many investors face a dilemma when selecting equipment: while batch pyrolysis systems are inexpensive and easy to start with, can they truly support large-scale projects processing 50 or 100 tons per day? The answer is often no; continuous pyrolysis systems are the technical solution that truly aligns with large-scale operations.

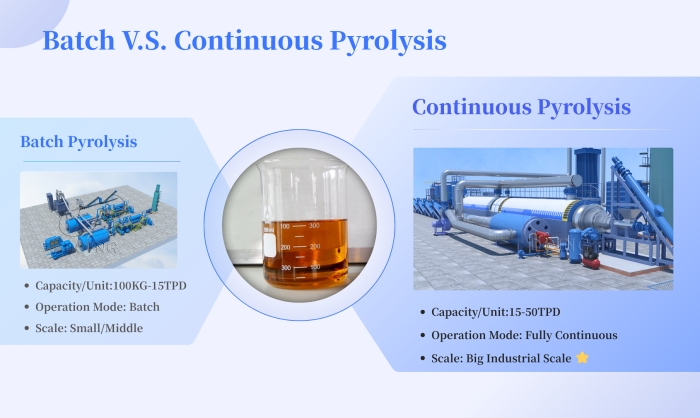

Comparisons of batch and continuous pyrolysis machine
Let us break down across five key dimensions—why continuous pyrolysis machine represents the optimal solution for large-scale recycling projects.
The typical workflow for batch pyrolysis machine involves: feeding → heating → cracking → cooling → slag discharge. A complete cycle often takes 12 to 24 hours, with approximately 30% to 40% of that time spent on heating and cooling. This means the equipment's actual effective operating time is only around 60%.
Continuous pyrolysis machine operates quite differently: it utilizes dynamic screw-sealed feeding, multi-zone temperature control, and continuous slag discharge systems to enable 24-hour uninterrupted feeding, cracking, oil recovery, and slag removal. Taking the fully continuous pyrolysis machine manufactured by DOING Company as an example, a single unit offers a daily processing capacity of 10 to 50 tons; furthermore, by configuring multiple production lines in parallel, the total processing capacity can be scaled up to the hundred-ton level.
| Comparison Items | Batch (Discontinuous) Type | Continuous Type |
| Daily Capacity (Single Unit) | 1–15 tons | 15–50 tons |
| Annual Operating Days | 280–300 days | 330–350 days |
| Productivity | Low; frequent start-stops | High; continuous and stable |
For large-scale projects requiring a stable feedstock supply and a rapid return on investment, continuous equipment offers a multi-fold advantage in terms of processing capacity per unit of time.
A major pain point with batch pyrolysis equipment is thermal fluctuation: after each feeding cycle, the temperature inside the furnace must climb from a low level to the cracking temperature (typically 400–600°C) before undergoing cooling and slag discharge. Consequently, operators must exercise strict control during the pyrolysis process to prevent inconsistencies in the quality of the resulting oil products.
Continuous processing equipment addresses these challenges through three key design features:
①Constant-temperature pyrolysis: Utilizing multiple independent heating zones ensures the material remains within a stable pyrolysis temperature range, avoiding drastic temperature fluctuations.
②Fully sealed conveying: A combination of dynamic sealing and inert gas protection prevents oxygen ingress, eliminating explosion risks at the source.
③Automated control system: PLC and supervisory computer monitoring allow a team of just 2–4 operators to manage the entire pyrolysis production line, significantly reducing labor costs and safety risks.

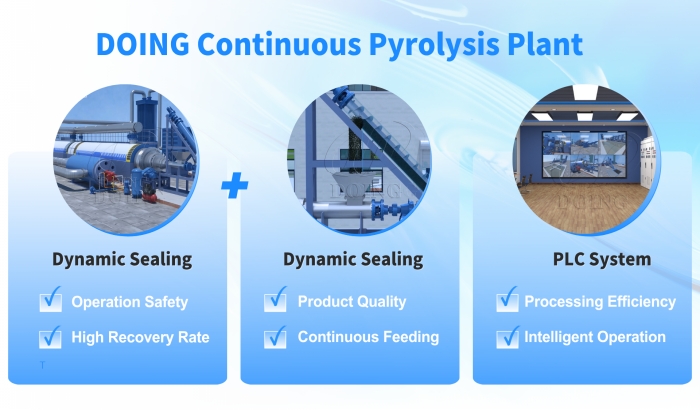

Advantages of DOING continuous pyrolysis solution
Large-scale waste recycling projects are highly sensitive to energy consumption. Continuous equipment offers inherent advantages in thermal energy utilization:
Continuous operation: Apart from scheduled maintenance, fully continuous pyrolysis machine operates 24 hours a day with automatic feeding and discharging. The main furnace maintains a stable internal temperature, eliminating the fuel waste associated with reheating the furnace after cooling—a requirement for batch-type systems.
Waste heat recovery: After high-temperature oil gas is condensed, non-condensable gases (such as methane and ethane) are fed back into the furnace for combustion. This high recovery rate provides a heat source for the pyrolysis process, saving 30%–50% on fuel costs.
Counter-current heat exchange design: Flue gas flows counter-currently to the material, resulting in heat exchange efficiency that is 15%–20% higher than that of batch systems.

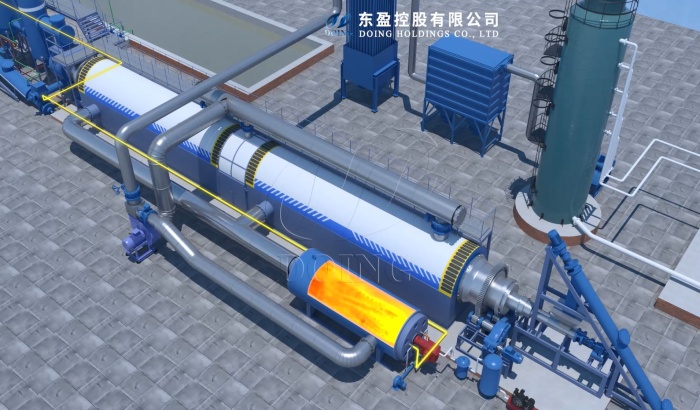

Gas recovery system of continuous pyrolysis plant
Products from batch-type pyrolysis equipment—such as carbon black, oil, and steel wire—often exhibit significant quality fluctuations due to variations in pyrolysis conditions between batches. For investors planning further processing (e.g., grinding carbon black into reclaimed rubber filler or refining oil into diesel), inconsistent quality translates to soaring post-processing costs.
Continuous equipment excels through precise temperature control and uniform discharge rates:
Internal furnace temperature gradients can be controlled within ±5°C.
Material residence time is precisely regulated by rotation speed (with an error margin of<3%).
The produced carbon black features stable fixed carbon content, high toluene transmittance, and minimal ash content fluctuation. This stability facilitates your product's entry into high-standard downstream markets or deep-processing facilities, allowing for a selling price 10% to 20% higher than that of products from batch-process systems.
Pyrolysis plant produced fuel oil and by-products
In recent years, national and local authorities have imposed increasingly strict environmental impact assessment requirements for solid waste treatment projects. Batch-process equipment is prone to fugitive emissions (such as volatile organic compounds and dust-laden gases) during processes like opening the vessel to discharge residue or shutting down for cooling.
In contrast, continuous equipment utilizes a fully enclosed, negative-pressure system, ensuring superior environmental performance throughout operation; it eliminates dust generation and maintains a cleaner plant environment. Furthermore, these systems offer real-time operational data logging—a crucial feature for ensuring long-term regulatory compliance amidst the Dual Carbon goals.
Large-scale waste treatment is as much an economic issue as a technical one. Continuous pyrolysis machine—characterized by high capacity, stability, and product quality, alongside low energy consumption and emissions—has been proven the most reliable technical pathway in numerous million-ton-scale projects worldwide. As a world-leading pyrolysis machine manufacturer, Henan Doing Company also supplied and helped many cutsomers install the industrial scale operation continuous pyrolysis plants in many countries and regions, such as Russia, China, Spain, Poland, India, USA, Kazakhstan, etc.

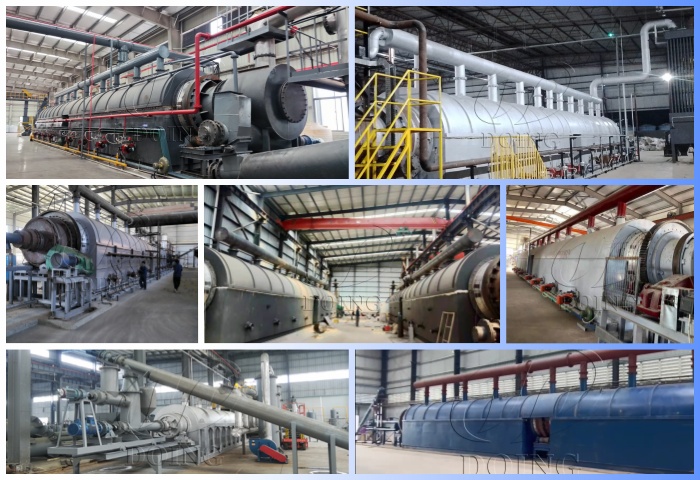

Fully continuous pyrolysis plant operation sites intalled by DOING
As a specialized manufacturer of fully continuous pyrolysis machine, we provide large-scale pyrolysis solutions with annual processing capacities ranging from 8,000 to 100,000 tons to clients across the globe. If you are planning an industrial scale waste recycling project for waste tires, waste plastics, or oily sludge, please feel free to contact Doing Company anytime. Our professional engineering team will provide you with accurate equipment selection, budget estimation and one-stop factory solution.
