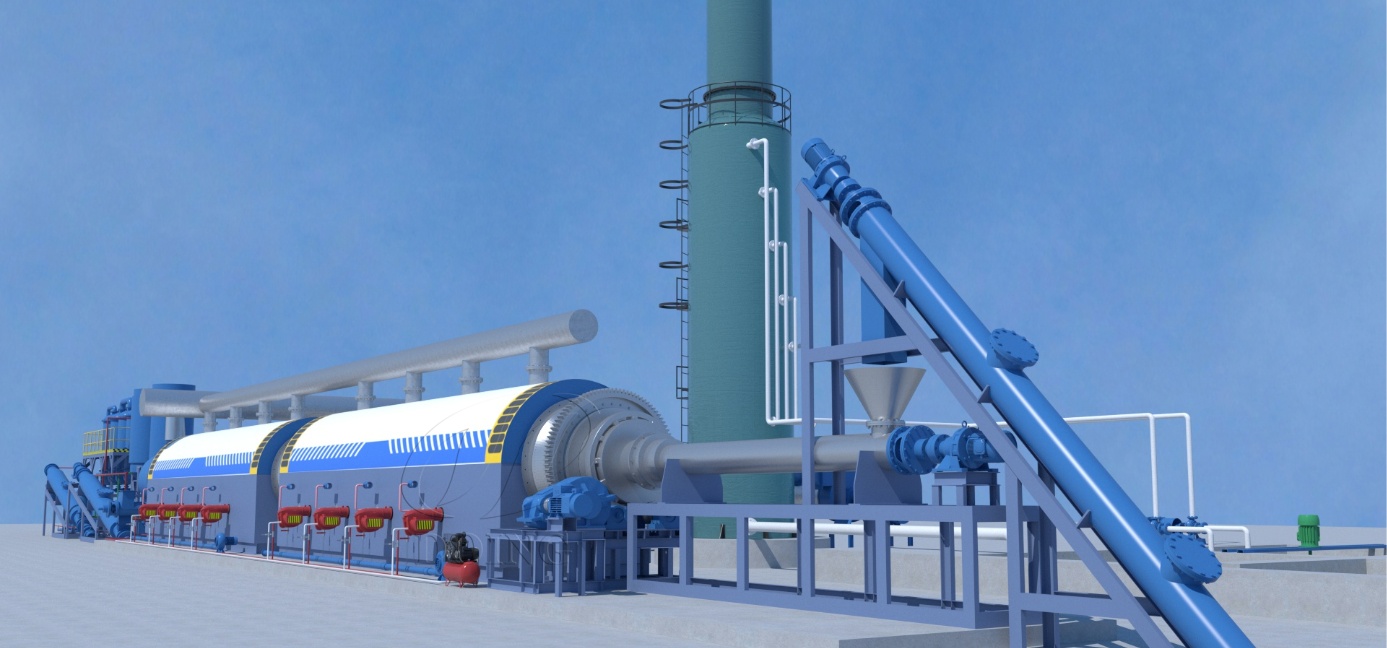

Continuous Waste Plastic Pyrolysis Plant

As a leading manufacturer specialized in waste tire/plastic/rubber pyrolysis plant more than 10 years, Henan Doing has developed the continuous waste plastic pyrolysis plant. This continuous waste plastic pyrolysis plant can continuously process plastic into plastic pyrolysis oil and carbon black without stop. All the continuous waste plastic pyrolysis plant is controlled by PLC(programmable logic controller), so it is very easy to operate it and our customers can save much cost of time and labor.

Processing Capacity: 20T/30T/50T, custom

End Products: Plastic oil, carbon black

Core Components: Pyrolysis reactor, condenser, PLC

Certificates: CE, ISO, SGS

Raw Material

The suitable raw materials of DOING continuous waste plastic pyrolysis plant can be polythene, polypropylene(PP), polystyrene(PS), ABS...

For Pure PP, PE, PS, ABS, the oil yield can be over 90%, but for mixed common plastic, the oil yield is usually from 30% to 50%,for paper mile, the oil yield is 30% for wet paper mile, 60% for dry paper mile.

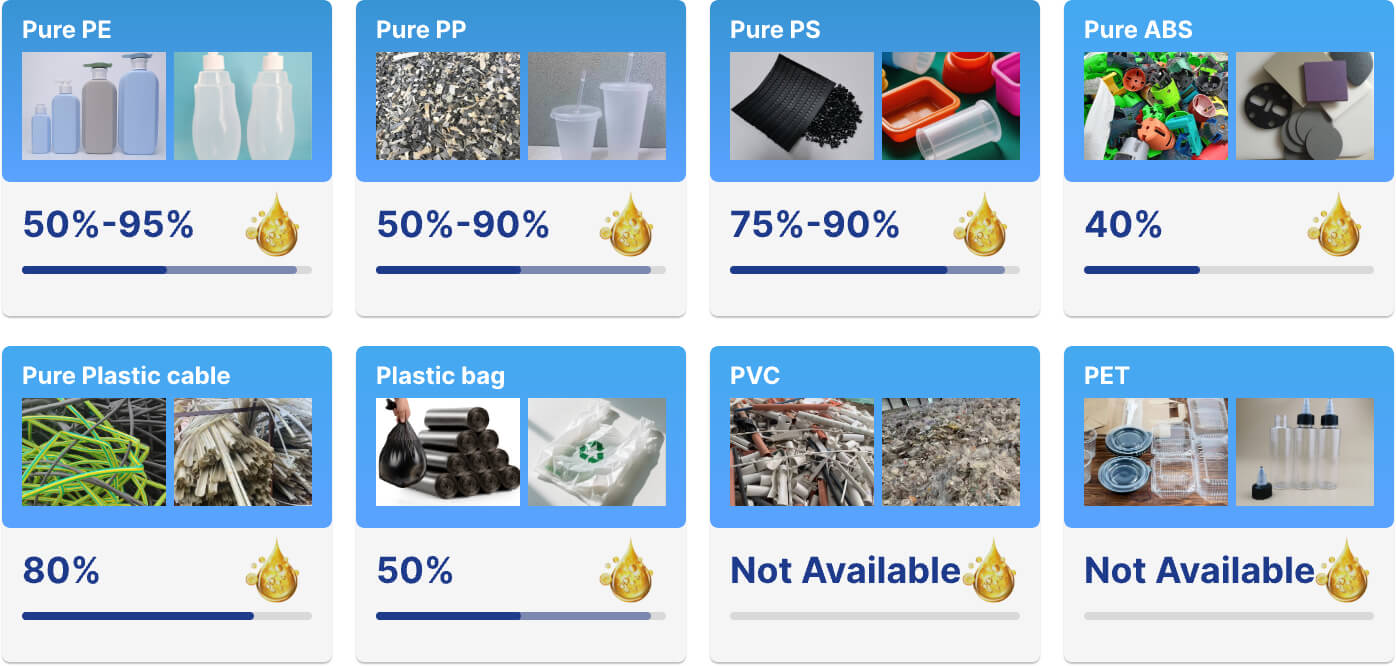

Raw material Picture Oil Yield
Pure PE pyrolysis plant 50%-95%
Pure PP pyrolysis plant 50%-90%
Pure PS waste plastic pyrolysis plant 75%-90%
Pure ABS plastic pyrolysis plant 40%
Pure Plastic cable plastic pyrolysis 80%
Plastic bag plastic pyrolysis 50%
PVC plastic pyrolysis plant Not available
PET waste plastic pyrolysis plant Not available

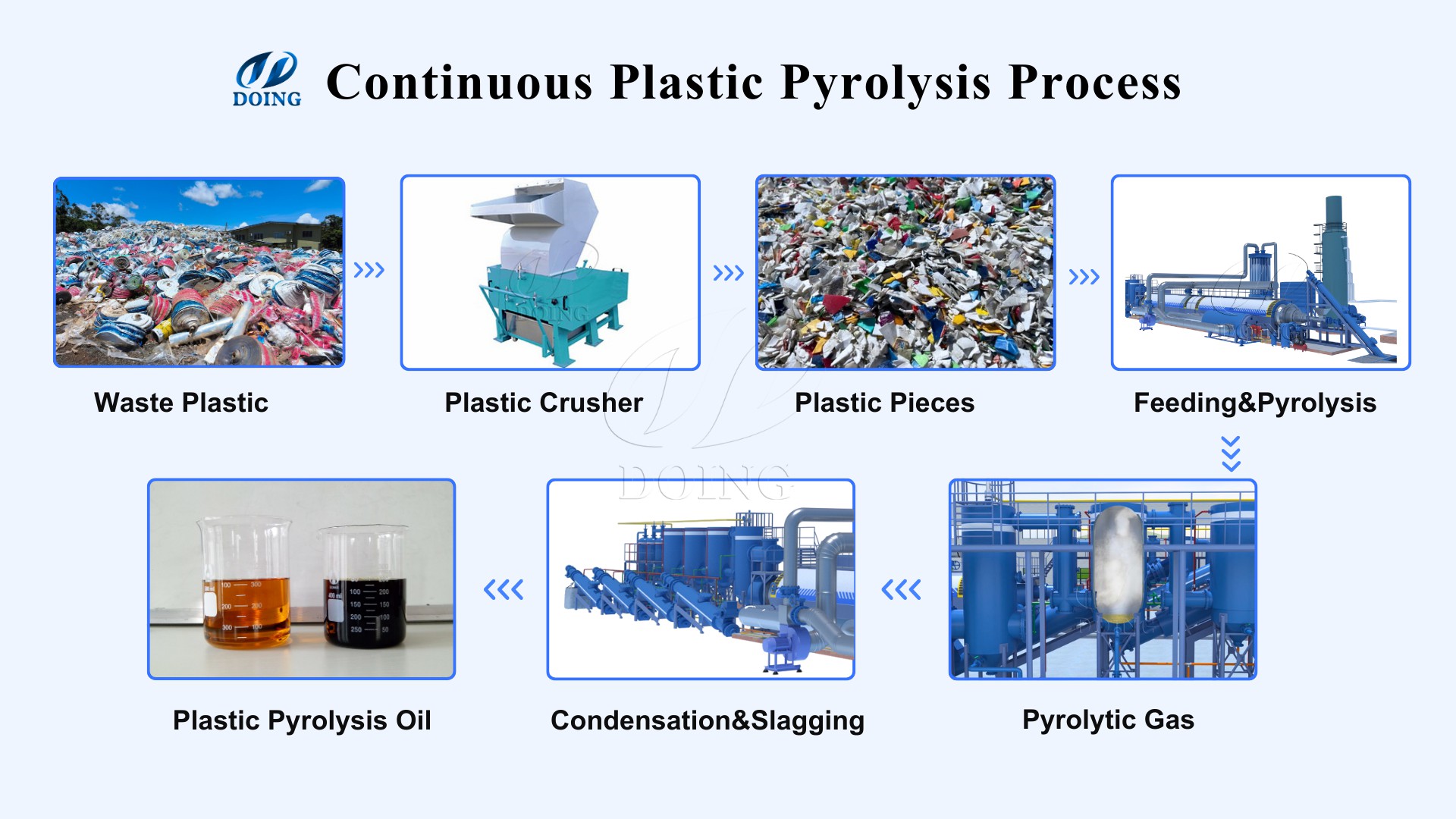

Main Working Process

To keep continuous feeding and discharge system, it requires the waste tyres should be in small size. So before continuous pyrolysis process, the waste tyres should be shredded into small pieces. As for detailed process, please check as below.

  • 1. All available plastic can be shredded by plastics crusher, and then feed plastic granules directly into continuous plastic pyrolysis plant through the feeding door.
  • 2. Our feeding door is with screw inside, so it can help you easily convey the plastic granules into our reactor No 1, then all the plastic can be decomposed under the high temperature through reactor No 1 to reactor No 2,then to reactor No 3...Until all the plastic fully pyrolysed, then all the carbon black powder will be discharged automatically to the carbon black tank.
  • 3. The obtained oil gas will be cooled by circulation water and the extra pyrolysis gas will be recycled through pipes into the burners for heating again. In our continuous waste plastic pyrolysis plant, the water circulation system and extra pyrolysis gas recycling system will help you save much fuel and water resource. In this way, our continuous plastic pyrolysis plant can minimize your cost and maximize your profits.

Technical Data of Continuous Waste Plastic Pyrolysis Plant

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

Unique Advantages of DOING Continuous Waste Plastic Pyrolysis Plant

  • 1. The use of PLC control system, a high degree of automation, saving manpower.
  • 4. Accurate calculation system ensures full cracking and high oil yield.
  • 2. Really realized 24 hours of continuous work, continuous feeding from one end, continuous discharging/dumping at the other end.
  • 5. The pyrolysis reactor adopts an internal rotation device and does not need to be stopped at regular intervals to replace the sealing material.
  • 3. Single machine processing capacity, small footprint. Cutting costs.
  • 6. The heating method is indirect heating, long service life.

End Products And Uses of Continuous Waste Plastic Pyrolysis Plant

The end products of DOING continuous waste plastic pyrolysis plant mainly include fuel oil, carbon black and little combustible gas. Their specific uses are as follows.

Pyrolysis Oil tyre pyrolysis plant

1. can be sold directly.

2. Reprocessed into diesel and gasoline by waste oil distillation machine.

3. can be used as industrial fuel materials for burning.

Carbon Black pyrolysis oil plant

1. can be sold directly.

2. Reprocessed into high quality carbon by the carbon black processing plant.

3. make carbon brick by briquetting machine.

Combustible Gas waste tyre pyrolysis plant can be recycled as fuel to heat the reactor
